Mono-pitch canopy
PARK-E 400/PARK-E 400XL.mono-pitch canopy
The benefits of a carport at a glance
Sun and weather protection
Power generation
Ecofriendly
Quick and easy to install
Promote your Corporate Social Responsibility credentials
PARK-E 400 is available in several sizes.. The specific configuration of the roof, with a 7° inclination of the solar panels, allows both the optimization of photovoltaic production and the most effective protection of the vehicles.
| Dimensions (Depth * Width) | Area | Maximum height | Number of PV panels* | Parking space(s) | |
|---|---|---|---|---|
| 5,762 * 3,704 m | 21 sqm | 2,996 m (XL version: 3500) | 10 | 1 | |
| 5,762 * 5,454 m | 31 sqm | 2,996 m (version XL: 3500) | 15 | 2 | |
| 5,762 * 16,062 m | 93 sqm | 2,996 m (XL version: 3500) | 45 | 6 | |
| 5,762 * 31,974 m | 184 sqm | 2,996 m (XL version: 3500) | 90 | 12 |
Compatibility with framed modules
- Length: 1722 to 1724 mm
- Width: 1132 to 1150 mm
- Thickness: 30 to 45 mm
Options
- Supply of photovoltaic modules
- Photovoltaic package (modules, inverters and cables): consult us
- Charging station mounting plate
- Charging stations: 7.2 or 22 kW (compatible with all types of charging station).
WHAT ARE THE ADVANTAGES OF A SOLAR CARPORT?
THE ADVANTAGES OF A CARPORT
• Protect your vehicles from the sun and weather all year round.
• Furnish your exterior and gain square metres in your home.
• Enhance the value of your home and business premises with equipment that provides high added energy value.
• Recover your investment through energy production.
• Quick and easy to install.
• Adaptable and modular structure depending on the surface area to be covered and the number of vehicles to be charged.
WHY CHOOSE SOLAR ENERGY?
• Power generation, free energy from the sun.
• Reduce your electricity bill.
• Become a player in the ecological transition by producing
clean, local and inexhaustible electricity and reduce your carbon footprint!
CLASS-E 400.Carport 100% photovoltaic
The benefits of a solar carport at a glance
Economic
Easy to install
Eco-friendly
Sun and weather protection
Photovoltaic carports that protect you from the sun while creating energy
CLASS-E 400 is a range of solar carports producing green energy, while providing protection against climatic variations. It allows you to enjoy an additional living space, sheltered, outside. It enhances the value of your home and achieves energy savings. The installation can be done in free standing as island (4 feet) or wall mounted(2 feet).
Furthermore, the unique slope shed configuration of the photovoltaic panels guarantees the best energy optimization.
A concentration of technology
Choose the size of carport that best suits your project.
Several dimensions depending on the surface surface you want to protect and/or your required electricity production. Each carport is available with 2 and 4 posts.
Foot height: 2400 or 3300 mm

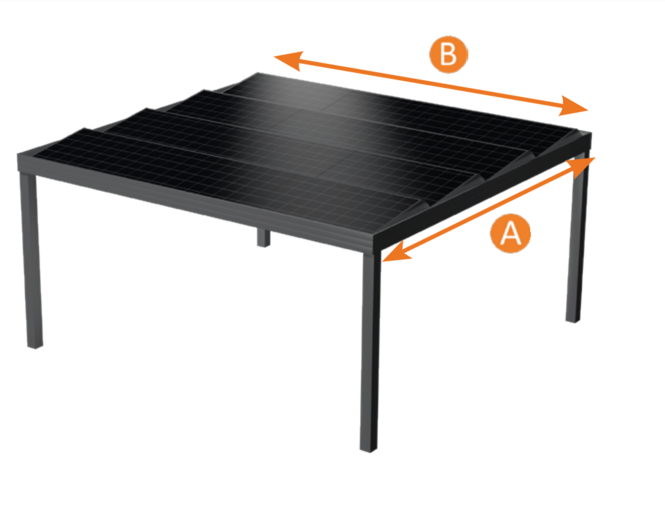

| Version | Dimensions (AxB) | Number of PV panels | Power (400 Wp modules) | Area |
|---|---|---|---|---|
CLASS-E 400 2×2  | 2946 x 3770 mm | 4 | 1,6 kWp | 11 sqm |
| CLASS-E 400 2×3
| 2946 x 5540 mm | 6 | 2,4 kWp | 16 sqm |
| CLASS-E 400 4×2
| 5710 x 3770 mm | 8 | 3,2 kWp | 22 sqm |
| CLASS-E 400 3×3
| 4328 x 5540 mm | 9 | 3,6 kWp | 24 sqm |
CLASS-E 400 4×3 | 5710 x 5540 mm | 12 | 4,8 kWp | 32 sqm |
¹ Compatibility with framed photovoltaic modules, Length: 1690 to 1770 mm Width: 1090 to 1160 mm, Thickness: 30 to 50 mm.
² Photovoltaic package: photovoltaic modules, micro-inverters, cables, please contact us.
Available colours
RAL 7016
RAL 9010
Your options
- Photovoltaic modules
- Photovoltaic package (photovoltaic modules, micro-inverters, cables), please contact us.
Built-in spots LED
IP54 – Neutral white 380 lumens per spot
Built-in feet bases
Footing section: 150 x 150 mm
(suitable for wall installation – 2 feet)
Ceiling, White polycarbonate plate 16 mm
Charging stations 7,2 or 22 kW
Several solar carports can be combined
