Living outside, day and night.
MA PERGOLA SOLAIRE pergolas are much more than just protection from the sun’s rays. They turn your outdoor space into a living space you can’t live without.
Imagine your new terrace this summer.
Protect yourself from the weather.
Whether it’s a sunny day or a rainy one, enjoy your outdoor space in all weathers until the beginning of winter.
MULTI APPLICATIONS
RESIDENTIAL BULDINGS: Terrace/balcony, pool house, garden furniture, wood storage shed
COMMERCIAL BUILDINGS: Terrace for bars, restaurants, outdoor sales areas, trolley shelters
PUBLIC BUILDINGS: Protected entrance hall, smoking area
INDUSTRIAL BUILDINGS: Equipment shelter
PERGOSOLAR HARMONY & HARMON-E 400.Pergolas.photovoltaic.bioclimatic.a combination of the 2!

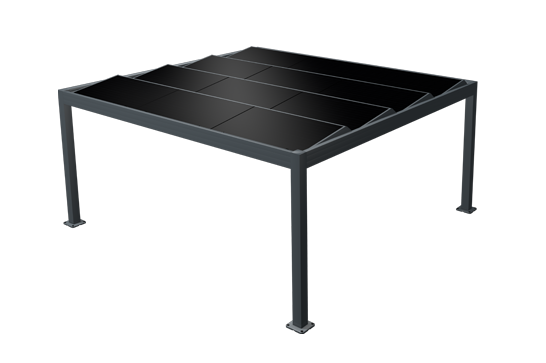

Opt for a 100% solar roof or a mix with adjustable slats.

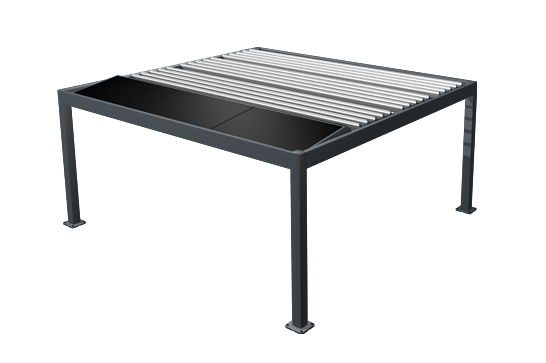

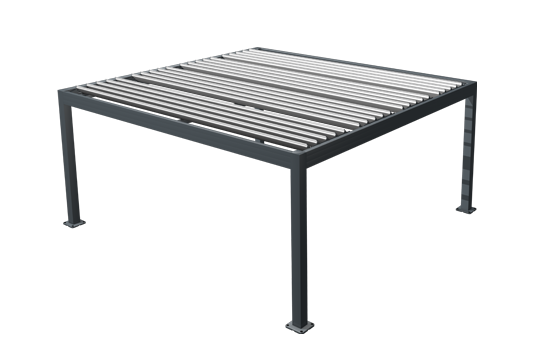

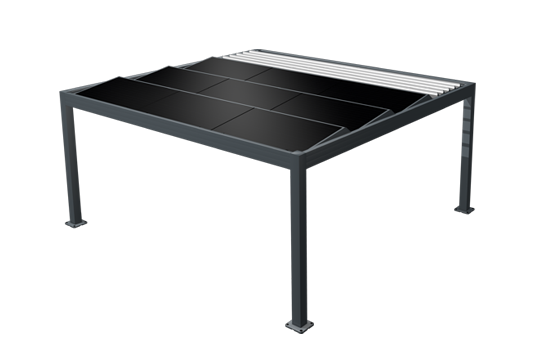

This innovative pergola has a modular roof. Choose between an electricity-generating roof, made up of photovoltaic modules, or a bioclimatic roof that ensures the circulation of air and light flow, thanks to motorised adjustable blades. Depending on your needs, you can also mix one or more lines of photovoltaic modules with adjustable blades.
The innovative 3-in-1 pergola!
THERMAL COMFORT.
CLIMATIC PROTECTION.
ENERGY PRODUCTION.
Become a producerof your own energy.
Our pergolas use the sun to produce some of the electricity your home needs.
The roof of your PERGOSOLAR pergola can be made up of several photovoltaic panels*.
When in contact with the sun’s rays, the panels will produce electricity which can then be consumed directly by your home if required.
This is called self-consumption.
*The number of panels varies according to the surface area you wish to cover or the power your home requires.
Let in the light.
Opt for a solution that optimises the light flow under the pergola.
Sizes (X * Y) | Surface | (range**) | Maximum number of panels | Power (1) | PLU zone (France) (2) | Out of the PLU zone (France) (2) |
---|---|---|---|---|
3,1 * 3,8 m | 12 sqm | (H400) | 4 | 1,6 kWp | Preliminary Declaration | Preliminary Declaration |
2,9 * 3,9 m | 12 m² | (H) | 4 | 1,4 kWp | Preliminary Declaration | Preliminary Declaration |
3,1 * 5,5 m | 17 sqm | (H400) | 6 | 2,4 kWp | Preliminary Declaration | Preliminary Declaration |
4,4 * 3,8 m | 17 sqm | (H400) | 6 | 2,4 kWp | Preliminary Declaration | Preliminary Declaration |
2,9 * 5,7 m | 17 m² | (H) | 6 | 2,1 kWp | Preliminary Declaration | Preliminary Declaration |
4,3 * 3,9 m | 17 m² | (H) | 6 | 2,1 kWp | Preliminary Declaration | Preliminary Declaration |
5,8 * 3,8 m | 22 sqm | (H400) | 8 | 3,2 kWp | Preliminary Declaration | Preliminary Declaration |
5,6 * 3,9 m | 22 sqm(H) | 8 | 2,8 kWp | Preliminary Declaration | Building permit |
4,3 * 5,7 m | 24 m² (H) | 9 | 3,15 kWp | Preliminary Declaration | Building permit |
4,4 * 5,5 m | 25 sqm(H400) | 9 | 3,6 kWp | Preliminary Declaration | Building permit |
5,6 * 5,7 m | 32 sqm(H) | 12 | 4,2 kWp | Preliminary Declaration | Building permit |
5,8 * 5,5 m | 33 sqm(H400) | 12 | 4,8 kWp | Preliminary Declaration | Building permit |
(1) Values given for 400 (HARMON-E 400) / 350 (HARMONY) Watt photovoltaic panels.
(2) PLU: Plan Local d’Urbanisme (France) (Local Town Planning Scheme)
Optional solar package: photovoltaic modules, microinverters, cables, connectors, AC protection box and monitoring for photovoltaic production.
RANGE** HARMON-E 400 (H400): compatible with framed photovoltaic modules with a length of between: 1690 and 1770 mm, width: 1090 to 1160 mm, thickness: 30 to 50 mm.
HARMONY RANGE** (H) : compatible with framed photovoltaic modules with a length of: 1740 to 1800 mm, width: 1030 to 1098 mm, thickness: 30 to 50 mm.
Customize your pergola.
Colours, lighting, cover plate, there is something for everyone.
Choose between the modernity of matt anthracite grey (RAL 7016) or the discretion of white (RAL 9010).
Feel like playing overtime on summer evenings? take the opportunity to add led lighting to your pergola.
A white polycarbonate plate is also available for a uniform ceiling.
Peripherial Strip LED and Built-in LED spotlights
Surrounding screen
Peripherial Strip LED
Built-in LED spotlight avec with a white polycarbonate plate
Claustra with adjustable slats
Remote control to operate the adjustable slats and control the peripheral and built-in lighting on the pergola
DAISY App WIFI connection. Control of the pergola’s functions with a smartphone
Assembly of pergolas / carports
Panel cladding
CLASS-E 400. Pergola 100% photovoltaic
The benefits at a glance
Economic
Easy to install
Eco-friendly
Sun and weather protection
Photovoltaic pergolas that protect You from the sun while creating energy
CLASS-E 400 is a range of solar pergolas that producegreen energy, while providing protection against the vagaries of the weather. It allows you to enjoy an additional living space, sheltered, outside. It enhances the value of your home and achieves energy savings. The installation can be done in free standing as island (4 feet) or wall mounted(2 feet).
Furthermore, the unique slope shed configuration of the photovoltaic panels guarantees the best energy optimization.
Choose the size that best suits your project.
Several dimensions depending on the surface surface you want to protect and/or your required electricity production. Each pergola is available in 2 and 4 feet.
Foot height: 2400 or 3300 mm
Version | Dimensions (AxB) | Number of PV panels | Power (400 Wp modules) | Area |
---|---|---|---|---|
CLASS-E 400 2×2 | 2946 x 3770 mm | 4 | 1,6 kWp | 11 sqm |
CLASS-E 400 2×3 | 2946 x 5540 mm | 6 | 2,4 kWp | 16 sqm |
CLASS-E 400 4×2 | 5710 x 3770 mm | 8 | 3,2 kWp | 22 sqm |
CLASS-E 400 3×3 | 4328 x 5540 mm | 9 | 3,6 kWp | 24 sqm |
CLASS-E 400 4×3 | 5710 x 5540 mm | 12 | 4,8 kWp | 32 sqm |
¹ Compatibility with framed photovoltaic modules, Length: 1690 to 1770 mm Width: 1090 to 1160 mm, Thickness: 30 to 50 mm.
² Photovoltaic package: photovoltaic modules, micro-inverters, cables, please contact us.
Colours
The pergolas match the architecture of your home and are available inmatt anthracite grey (RAL 7016)orwhite (RAL 9010)
Your options
- Photovoltaic modules
- Photovoltaic package (photovoltaic modules, micro-inverters, cables), please contact us.
Built-in spots LED
IP54 – Neutral white 380 lumens per spot
Built-in feet bases
Footing section: 150 x 150 mm
(suitable for wall installation – 2 feet)
Ceiling, White polycarbonate plate 16 mm
Charging stations 7,2 or 22 kW
Junction possibilities
